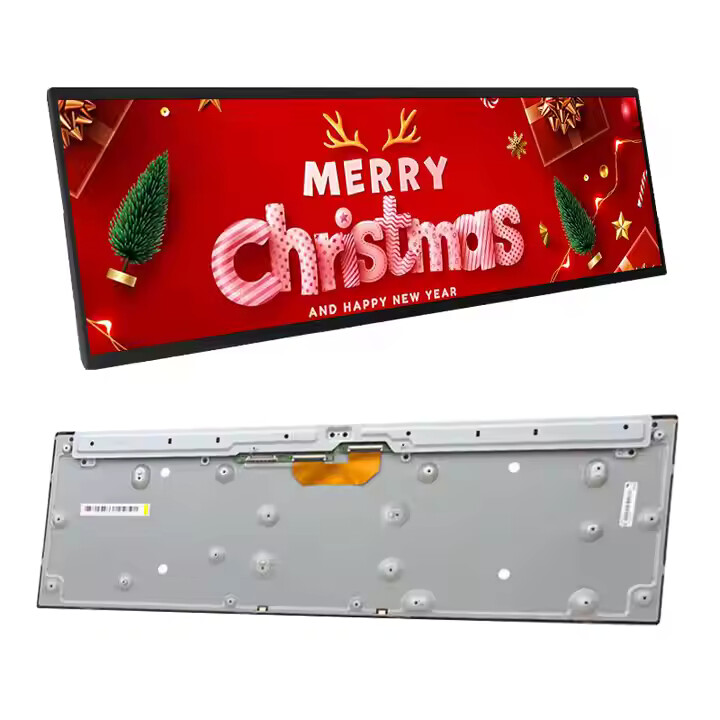

BOE DV280FBM-NB1 Summary

BOE DV280FBM-NB1 supports display 1920(RGB)×360 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 699.84(W)×131.22(H) mm, outline size of 732(W)×165(H)×17.3(D) mm, viewing area size of 704(W)×136(H) mm, net weight of 2.40Kgs (Typ.). As a ADS, Normally Black.

BOE DV280FBM-NB1 can provides 700 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)viewing angle, and response time of 8 (Typ.) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC), working life time of 50K hours.

BOE DV280FBM-NB1 utilizes LVDS (1 ch, 8-bit) as it’s signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It’s typical vertical frame rate (Fv) is 60Hz.



Brand
BOE
Model P/N
DV280FBM-NB1
Panel Type
a-Si TFT-LCD, LCM
Resolution
1920(RGB)×360  69PPI
Pixel Format
RGB Vertical Stripe
Active Area
699.84(W)×131.22(H) mm
Bezel Opening
704(W)×136(H) mm
Outline Dim.
732(H)×165(V) ×17.3(D) mm
Luminance
700 cd/m² (Typ.)
Contrast Ratio
1200:1 (Typ.) (TM)
Response Time
8 (Typ.)(G to G)
Viewing Angle
89/89/89/89
Operating Mode
ADS, Normally Black, Transmissive
Support Color
16.7M   72% NTSC
Light Source
WLED , 50K hours , W/O Driver
Frame Rate
60Hz
Interface Type
LVDS (1 ch, 8-bit) , 51 pins Connector
Power Supply
12.0V (Typ.)
Environment
Operating Temperature: 0 ~ 50 °C ;
Storage Temperature: -20 ~ 60 °C
