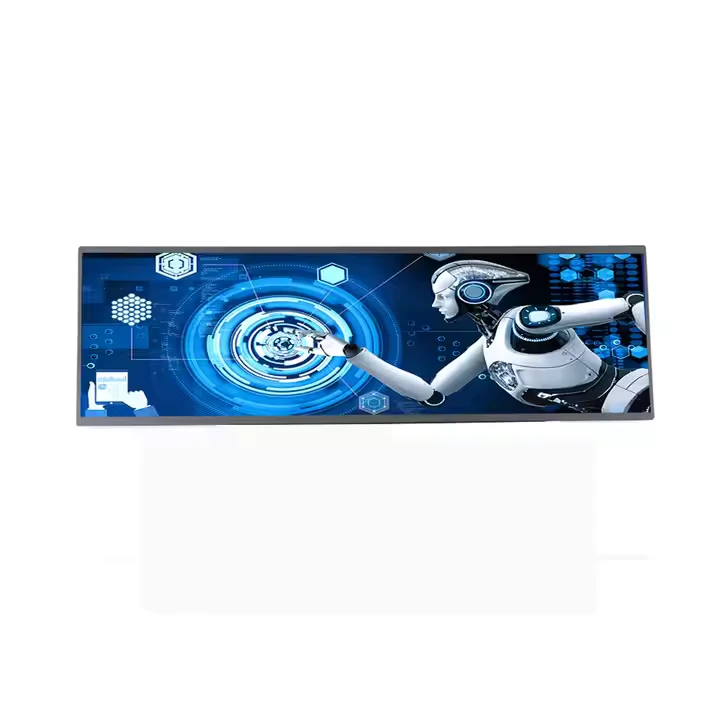

BOE DV350FBM-N10 Summary

BOE DV350FBM-N10 supports display 3840(RGB)×200 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 877.824(W)×45.72(H) mm, outline size of 891.6(W)×60.4(H)×17.1(D) mm, with surface treament of Antiglare (Haze 1%),  As a ADS.

BOE DV350FBM-N10 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 viewing angle, and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors. working life time of 50K hours, With LED Driver.

BOE DV350FBM-N10 utilizes V-by-One 8 lane as it’s signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12V (Typ.). It’s typical vertical frame rate (Fv) is 60Hz.



Brand
BOE
Model P/N
DV350FBM-N10
Diagonal Size
35″  (Native bar)
Panel Type
a-Si TFT-LCD, LCM
Resolution
3840(RGB)×200  111PPI
Pixel Format
RGB Vertical Stripe
Active Area
877.824(W)×45.72(H) mm
  • Outline Dim.

    891.6(W)×60.4(H)×17.1(D) mm

  • Treatment

    Antiglare (Haze 1%)

  • Luminance

    500 cd/m² (Typ.)

  • Contrast Ratio

    1000:1 (Typ.) (TM)

  • View Direction

    Symmetry

  • Response Time

    8 (Typ.)(G to G)

  • Viewing Angle

    89/89/89/89 (Typ.)(CR≥10)

  • Operating Mode

    ADS, Normally Black, Transmissive

  • Support Color

    1.07B

  • Light Source

    WLED , 50K hours , With LED Driver

  • Frame Rate

    60Hz

  • Interface Type
  • V-by-One 8 lane , 51 pins Connector
  • Power Supply
  • 12V (Typ.)
  • Environment
  • Operating Temperature: 0 ~ 50 °C ;
  • Storage Temperature: -20 ~ 60 °C
